How to Install a Winch Electrical Disconnect for Off-Road Vehicles
Updated: Aug 28
Affiliate Disclosure: This post is unsponsored, I don't take products for free to do reviews on them. To support the studio, I use affiliate links from Amazon and eBay. If you click and purchase, I may earn a small commission at no extra cost to you.
Quick Summary
Critical Safety Control: Winches pull 60–70 amps during spooling and up to 480 amps under heavy load—a disconnect lets you instantly cut electrical power if a malfunction occurs.
Versatile Switch Options: Covers manual under-hood switches (like marine-grade Blue Sea units), simple quick-disconnect plugs, and convenient in-cab solenoid systems.
Built-in Trail Protection: Mounting under the hood pairs seamlessly with keeping the hood popped during winching, creating a metal shield to protect the driver and windshield from potential line failure.
Simple Wiring & Mounting: Wires directly inline on the positive power cable between the battery and the winch using a secure mounting bracket away from moving parts.
What You Will Learn In This Post
A vehicle recovery winch handles immense electrical loads, jumping from a baseline 60–70 amps while spooling to nearly 500 amps under extreme strain. In this guide, you will learn why isolating that live circuit with a dedicated shutoff switch is a vital, low-cost safety upgrade that protects your electrical system and prevents runaway winch scenarios on the trail.
You will discover the different disconnect styles available—including manual marine-grade switches, quick-release plugs, and remote in-cab solenoids—along with how to select a unit rated for your winch's maximum draw. We will walk through the core steps of fabricating a secure mounting bracket, routing the switch inline on the positive battery lead, and safely packaging the hardware inside a crowded engine bay.
Finally, this post details the strategic recovery advantages of under-hood placement, explaining how popping the hood during winching acts as a physical barrier against line snaps. Backed by certified rigging principles, you will gain practical, step-by-step knowledge to make your off-road winching setups safer, cleaner, and more dependable.
Install A Winch Electrical Disconnect: Easy Upgrade To Your Off-Road Vehicles Safety
Hey there! So, let’s talk winches for a sec. Did you know they can pull around 60-70 amps when you're spooling in and out? But when they’re under load, they can really crank it up to about 480 amps—crazy, right? I read this Motor Trend article that breaks it down.
Anyway, if things go south, you definitely want a way to cut power to your winch super fast. That’s where a simple on/off battery disconnect comes in handy. I’ve got mine tucked under the hood, which is great because part of my winch recovery safety plan is to pop the hood open. That way, if the winch line snaps, I’m protecting my windshield and keeping the driver safe. Just a little winch wisdom for you!
Want to install a winch? Check out the article and video where I install a Warn Winch on my Gladiator:
Several Types Disconnects Are Available
On/Off Switch - Many types of on/off switches are available in different amperages. Generally mounted under the hood.
Plug/Unplug Type - The most simple. Find a spot to cut wires, install male one side, female on the other. Great for portable winches.
Solenoid Type Winch Disconnect - Warn makes a solenoid winch disconnect that requires wiring a switch somewhere inside the vehicle. Handy if you want convenience of not having to open hood to switch wing on and off.
I Installed Disconnects On My Jeep Wrangler and Gladiator Ecodiesels
Recently I did an installation on a Jeep with the 3.0 Liter V6 Ecodiesel motor, and I thought I'd share some tips. The disconnect I used is pretty versatile and can work on most vehicles with a few tweaks here and there. Just a heads up—make sure your disconnect can handle the max amperage your winch pulls when it's under load. If you're looking for something beefier, there are switches out there with higher ratings. Happy wrenching!
The Disconnect Switch I Chose
I chose this Blue Sea high quality marine grade battery disconnect. Its rated for the amperage my winch will draw when under load. It is a simple on off switch.

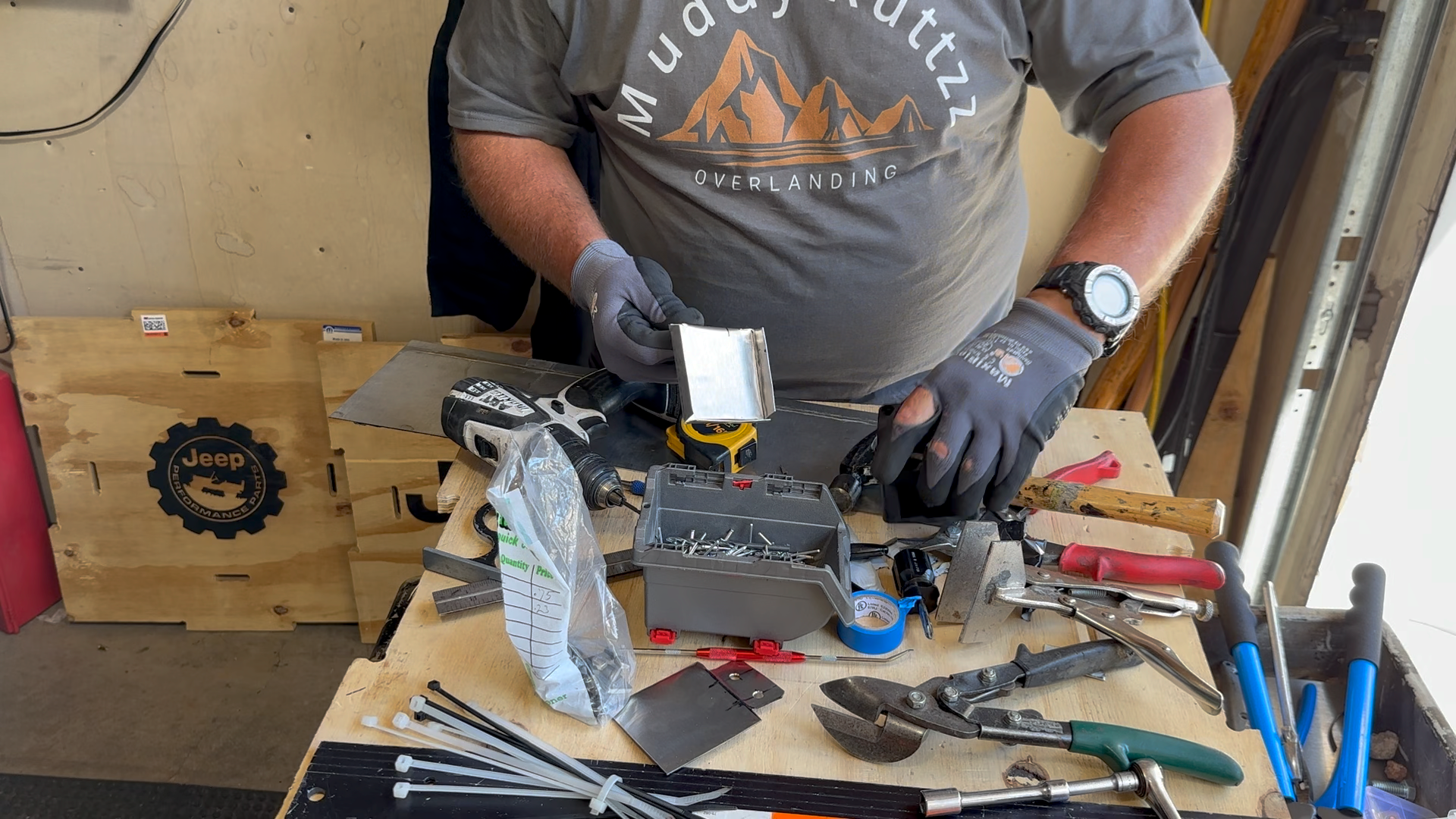

Stainless Bracket Fabricated Mount Unused in Diesel Jeeps Switch Fits Into Bracket
Fabricating A Stainless Bracket To Hold The Disconnect Switch
First task to install this winch electrical disconnect was to fabricate a bracket to mount it inside the engine compartment. Luckily the Jeep had a mounting location I was able to attach to. That made it easier. See video for instruction on fabricating sheet metal.
Wiring The Disconnect Is Pretty Simple
Disconnect gets wired on the Postive wire between the battery and winch. It should be in a easy to reach location not near moving parts. I had to connect wires, install switch on stainless bracket and then bolt bracket to mount under hood. Worked out very well given there is not much room under the hood.

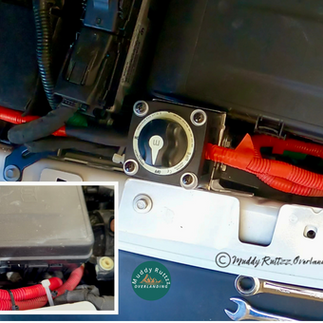

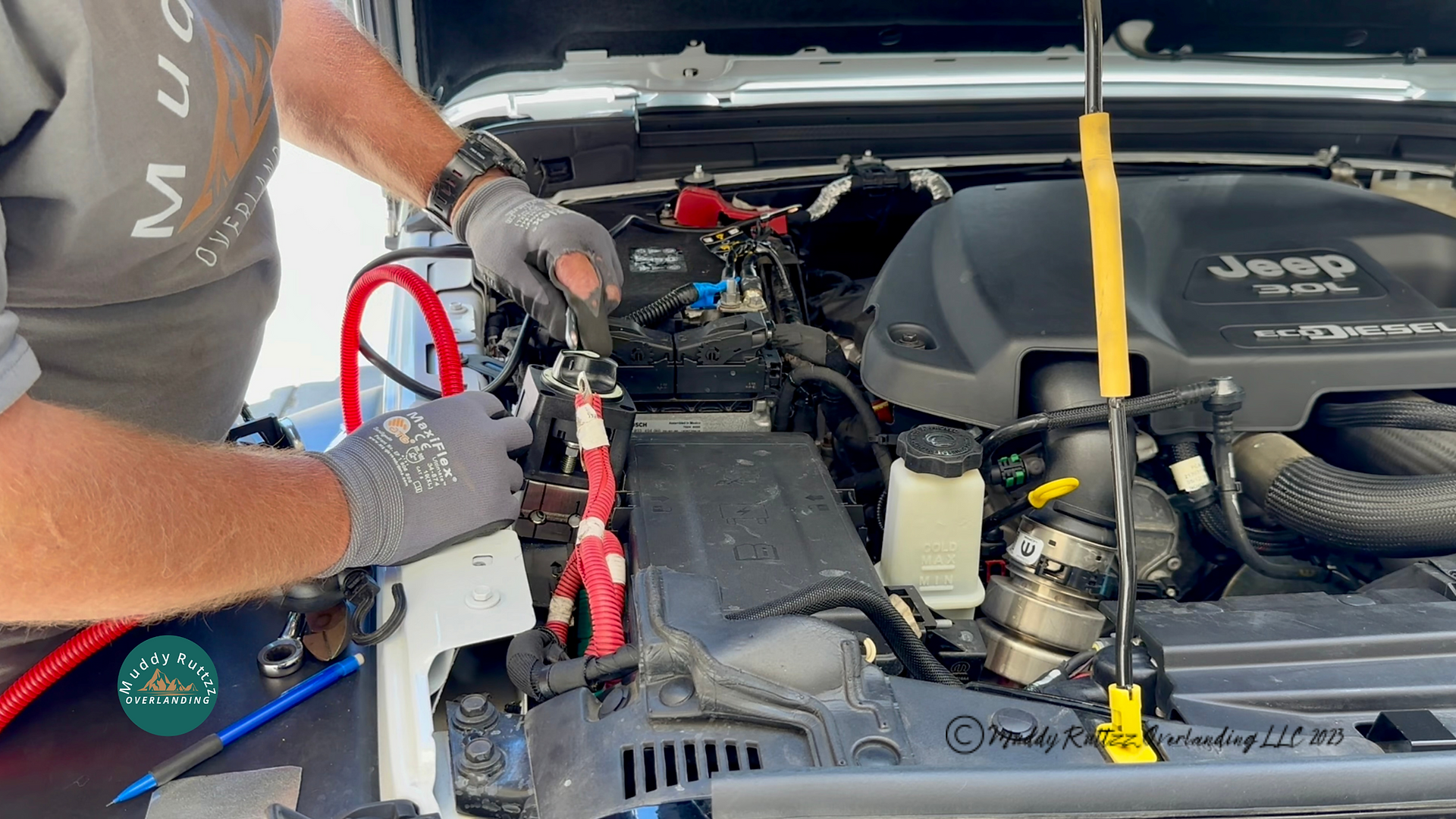

Wiring The Winch Disconnect Mounted Switch On Bracket Completed Install Of Switch
Open The Hood To Turn My Winch Electrical Disconnect On? Yes, Here Is Why
You might think that installing a winch electrical disconnect under the hood is a bit of a hassle, but it's actually super handy. I usually pop the hood whenever I'm using my winch, unless I'm flying solo and need to keep an eye on things while operating it. I roll with synthetic winch line and soft shackles, and the only metal piece on my winch line is the Factor 55 Flat Link at the end. Plus, having the hood open is a nice safety measure—it keeps the driver (if there's someone in the vehicle) and the windshield protected. In the rare chance that something heavy goes flying during a recovery, that hood acts as a solid metal barrier. So, it’s not just convenient; it’s smart!
Opening Hood When Using Winch Hood Open When Using Winch Factor 55 Flatlink
This Article Will Give You A Good Idea How To Install Winch Electrical Disconnect. See My Video For Detailed Installation.
Check out my video for more extensive details on how to install the winch electrical disconnect. Here is a brief list of steps involved.
Choose Type Of Winch Disconnect You Want
Obtain Winch Disconnect With Proper Amperage Rating
If Under Hood Choose A Safe Location
Install Mounting Bracket Or Other Method Of Stabilizing Switch
Cut Positive Winch Wire And Add Connectors
Install Winch Electrical Disconnect
Test To Make Sure It Works
Happy Winching!
Conclusion: Off-Road Recovery Is Dangerous - Safety First
Over the years in my construction career I've picked up some solid rigging skills, and guess what? I'm a Certified Rigger! This experience really comes in handy when it comes to vehicle recovery. Safety is my number one priority, and I’ve learned that the construction world is all about being conscious of that. Every off-road recovery is a unique adventure. Sometimes you’ve got helpful folks around, and other times, it can get a bit chaotic. That’s why it’s super important to stay calm and make sure no one gets hurt in the process. If you're looking to brush up on winch safety, check out this awesome article from Motor Trend. And don’t miss this fantastic Youtube video by Ronny Dahl – it's packed with great info! --- Feel free to let me know if you need any more adjustments!
