DIY Floor Jack Restoration: A Step-by-Step Guide (Resurrecting a Classic)

Writer: Muddy Ruttzz
Muddy Ruttzz
Sep 4, 2024
8 min read

Updated: Aug 30

Affiliate Disclosure: This post is unsponsored, I don't take products for free to do reviews on them. To support the studio, I use affiliate links from Amazon and eBay. If you click and purchase, I may earn a small commission at no extra cost to you.

By Muddy Ruttzz

TL;DR / Quick Summary

  • Spot the Warning Signs: Learn how to identify when internal seals and O-rings are failing even if you don't see visible oil leaking on the floor.

  • Tear Down & Rebuild: Step-by-step guidance on safely removing the power unit, breaking loose high-torque factory nuts with garage-tested leverage tricks, and replacing worn seals.

  • Fill & Bleed Like a Pro: Simple techniques for mess-free oil refills and purging trapped air from the hydraulic system to restore full lifting power.

  • Save Classic Tools: Why spending a little time rebuilding a vintage, heavy-duty floor jack beats throwing it away or buying cheap modern replacements.


What You Will Learn In This Post

Don’t throw away that old, sinking floor jack! Classic hydraulic jacks like the vintage Sears 3 ½ Ton model featured in this guide, were built to last a lifetime, and in most cases, all they need is a fresh set of seals to work like new again. In this step-by-step guide, you'll discover how to diagnose common hydraulic issues, track down the right rebuild kit for your specific model, and break down the power unit using simple tools and redneck-engineered leverage tricks.


You will also learn the exact method for cleanly refilling your jack with fresh hydraulic fluid and properly bleeding out trapped air so it can safely hold a heavy load. Finally, we’ll cover practical load-testing tips to verify your rebuild is leak-free and rock-solid before putting it back to work under your vehicle. Whether you're working on a vintage Craigslist find or your trusted garage workhorse, this post gives you the knowledge and confidence to bring it back to life.


Floor Jacks are amazing? Believe it or not they are. Consider these facts:

  1. Hydraulic Cylinder: The main lifting mechanism is a hydraulic cylinder, which uses fluid pressure to push a piston upwards.

  2. Portable: Many jacks are portable and can be easily moved around a garage or workshop.

  3. Multiple Uses: Hydraulic jacks are used in a wide variety of applications, including automotive repair, construction, and industrial machinery.

  4. High Capacity: Some hydraulic jacks can lift incredibly heavy loads, such as large trucks or construction equipment.

  5. Pascal's Principle: Hydraulic jacks operate on Pascal's Principle, which states that pressure applied to a confined fluid is transmitted equally in all directions. (More on Pascal's Principle)

  6. History: Hydraulic jacks have been around for centuries, with early versions using water or other liquids.


Sears 3 1/2 Ton Capacity Service Jack With Patented Speedy-Lift Lever

Model No. 214.50136


When Is It Time For Your Jack To Undergo "Floor Jack Restoration?

Viagra will not help a floor jack stay up! If your floor jack fails to support a load or cannot hold itself up (like in this video), it needs to be rebuilt. Even if you don't notice any oil leaks, the issue could be internal. Floor jack troubleshooting is not mysterious. This is a Sears 3 1/2 Ton

Related How To and DIY Content


Package containing o-rings and wiper/seal for a Sears 3.5 ton floor jack rebuild.
Rebuild Kit For Sears Model No 214.50136 Floor Jack

How Did I Get So Interested In Floor Jacks? (It Just Needs An O-Ring)

Borrowed a jack from a buddy to install my Mopar Lift Kit on our Gladiator. He said it needed an O-Ring. Actually, it required a complete floor jack restoration. Took on the project and I was hooked. Floor jack seal replacement is not that difficult. I have links below to purchase this and other rebuild kits.




Sears floor jack and manual sitting on the floor.
30 Year Old Floor Jack Looks Like New




Found The Exact Same 30 Year Old Sears 3 1/2 Ton Floor Jack On Craigslist


I wanted to rebuild another and document the process in a video. I got very lucky to find the exact jack I borrowed from my buddy but in like new condition. Gentleman bought it when he was 17 years old. He even had the original manual.














Ready to rebuild your floor jack? Find the seal kit using the model name and number of your Jack.

Phase 1: Floor Jack Disassembly

I set my jack up on the tool cart with cardboard to catch any residual oil. Take a lot of photos so you know how to put it back together. It's important to organize all your small parts like bolts and springs. We don't want to spend hours trying to find and figure out how to put this back together after the rebuild. A magnetic tray is awesome for containing parts.

Stop losing bolts and hardware mid-job. Keep every teardown organized with heavy-duty magnetic parts trays, multi-piece organizer sets, and flexible magnetic pads.

Floor jack is sitting on a utility cart with a impact drill motor in place to remove bolts. With the bolts remove the power unit will be free and can have it's internal seals and o-rings replaced.
A Impact Motor Makes Quick Work Of The Disassembly

Step 1: Remove A Few Bolts And The Power Unit Comes Out

Due to its excellent condition, troubleshooting this floor jack was a simple task. The robust construction ensured that the wheels, handle assembly, and other moving parts were all in good shape and required no maintenance. The only components showing signs of wear are the seals and o-rings, which is simply due to the jack's age.


The power unit portion of the floor jack looks like a bottle jack. It is where most of the seals and o-rings are on the jack.
Power Unit of the Floor Jack removed.
Floor Jacks: Powered By A Bottle Jack Adapted To A Lifting Mechanism
Traditional floor jacks are essentially modified hydraulic bottle jacks. Positioned horizontally or at an angle, they use hydraulic power to move a lifting arm. This design allows the jack to easily slide under an axle, enabling effortless lifting of heavy weights.

Step 2: Floor Jack Power Unit Disassembly Process: The Internals

To access the main seal and o-rings, the large Cylinder Top Nut (Gland Nut) on top of this assembly needs to be removed. It was initially installed at the factory with a significant amount of torque, making it challenging to remove without a lot of leverage. I took mine to my buddy's place and we used his large vise, big pipe wrenches and applied some heat and it finally came off. The next 5 photos show the innards of the power unit. Most floor jacks will be similar if not the same.

Get the right leverage for your floor jack rebuild:

The cylinder top nut measures 2-1/4" (57 mm). Make quick work of stubborn factory torque by pairing a 3/4" drive socket with a heavy breaker bar or impact.





Comprehensive List of Disassembly Steps

  1. Set the jack in a clean uncluttered area.

  2. Remove bolts and and separate the Power Unit.

  3. Match mark the position of the Cylinder Top Nut as a reference for reassembly.

  4. Remove the Cylinder Top Nut on top of the power unit.

  5. Remove the Ram.

  6. Remove old O-Rings, Bushings and Plastic Washer.

  7. Remove filter screen.

  8. Clean and dry all parts

  9. Prepare for re-assembly

Phase 2: The Power Unit Assembly Internals: Where Floor Jack Restoration Mostly Happens

After you have replaced the O-Rings and Bushings in your floor jack it's time to get it all put back together. You got your photos? This is where I started to get excited about having a Vintage Tool that I could be proud to use in my garage. Your jack might be different but probably similar enough that my photos and this guide will help.


Floor Jack Power Unit is being held in a vise and pipe wrench is being used to remove the top.ed
The nut is about 2 1/4". I would have liked to use the proper size socket but pipe wrench and a large adjustable wrench was available to me.

Small Vise Overwhelmed

I bought this little vise to help me working on my bicycles and other smaller tasks. It really was not the right tool for the job. In the DIY world we are constantly having to adapt. That is what I did.



A Little Redneck Engineering Helps Me When I'm Working Alone

Working solo, I was reconstructing a classic floor jack. Lacking the perfect tools, I improvised with what I had in my garage. I could have headed back to my buddies place and used his large industrial size vise but I was hot to get my jack working again.


A "Rube Goldberg" like setup to add some leverage and and a extra hand.

Utilizing another floor jack as a stabilizer to prevent the pipe wrench from rotating, and secured a conduit to my sizeable adjustable wrench to increase torque for tightening the nut.


Power unit of a floor jack showing matchmarks lining up after rebuilding and tightening top nut. Match marks lined up shows nut is properly torqed.
Torqued Till My Matchmarks Lined Up

Tightening the Cylinder Top Nut

This is where matchmarking the Cylinder and the Cylinder Top Nut paid off. I did not have guess or research a torque value.

I was able to apply enough force to get my matchmarks to line up. I'm happy with that result.


Floor jack is sitting on top of a cart and man is adding jack oil using a syringe. After the oil is added air needs to be bleed out.
Using Syringe To Add Fresh Jack Oil

Floor Jack Needs To Be Refilled With Quality Jack Oil And Have Air Bleed Out

Filler hole on jack is small and hard to access. I like to use a syringe to add the oil. It prevents the mess and waste of jack oil. Here is the procedure for filling and bleeding your jack:

  1. Position the jack on level ground.

  2. Refill with new oil through the oil filler plug.

  3. Remove air from hydraulic system by opening the release valve and rapidly pumping the jack handle several times.

  4. Replace filler cap.

See this video on filling and bleeding the jack: How To Fill And Bleed A Hydraulic Floor Jack (Purge Air)


Comprehensive List of Reassembly Steps

  1. Install all new O-Rings, Bushings and Plastic Washers on the Ram and Cylinder.

  2. Insert the Ram in the Cylinder Top Nut and thread the nut onto the Cylinder.

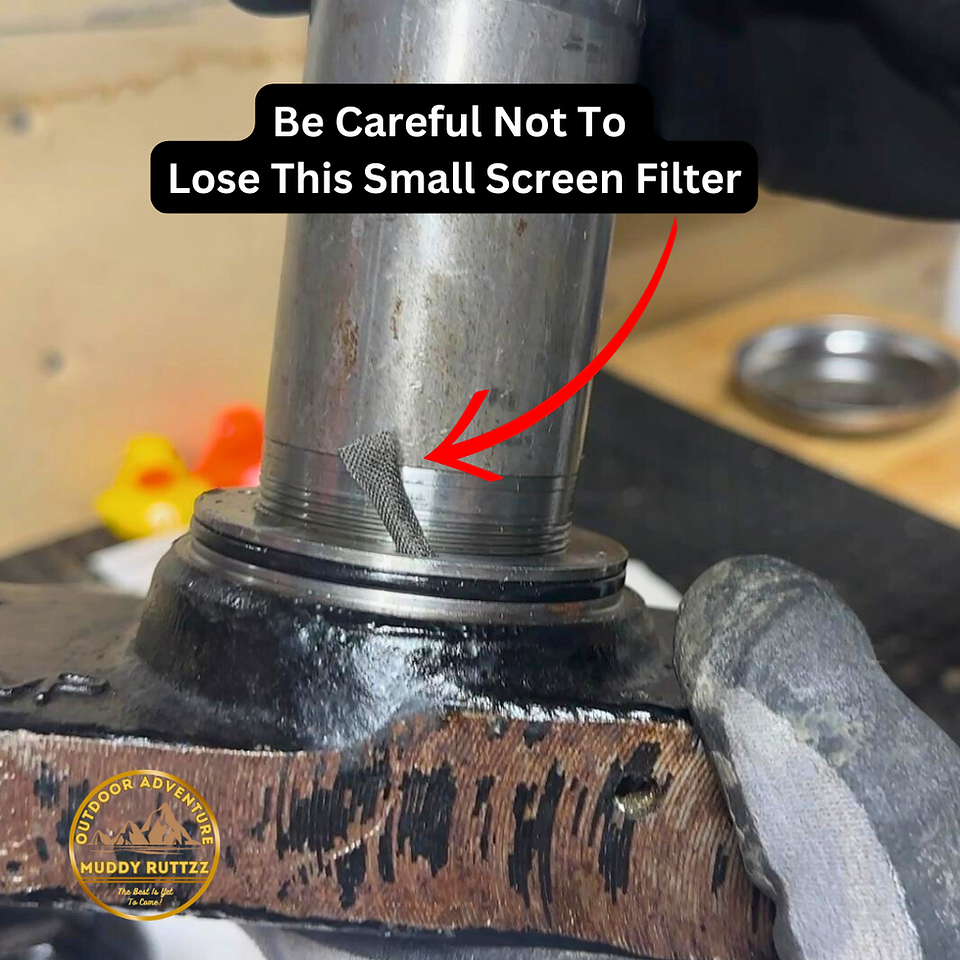

  3. Be sure you have ot forgotten the small filter screen.

  4. Tighten the Cylinder Top Nut to spec.

  5. Install the completed Power Unit in the back in the Jack Frame.

Testing The Jack After The Rebuild

Floor jack is lifting front tire of Jeep off ground in a driveway
Testing the Newly Rebuilt Floor Jack By Lifting My Jeep Wrangler

Raising A Heavy Jeep With Vintage Rebuilt Floor Jack

Safety first! The first time using the rebuilt jack we aren't sure of we were sucessful. Keep all your fingers and toes safe and in case the jack fails.

This video will show you how to fill the floor jack with oil and bleed trapped air.

Thanks For Checking Out My Blog Post!

Man sitting next to Jeep front tire that is lifted in the air by a recently rebuilt floor jack. Man looks very happy because he was successful in rebuilding the tool
I'm Really Happy The Way This Project Turned Out

Conclusion: Don't Throw Out That Old Floor Jack!

Watch my video for more details and use this article and you will have no problem rebuilding this or most any other floor jack. Principles are the the same for most all of them. I took me a while because I was making a video. It won't take most folks very long. I'm really happy to have a vintage floor jack that I can confidently use an everyday tool. I learned a lot and it was a great project.
