How far down the rabbit hole are you willing to go to kill the shakes? In Part 8 of the Nuclear Option, we aren't just replacing parts—we're reinforcing the entire front end with solid steel.

Muddy Ruttzz Youtube Channel

About The Author

Conclusion

https://www.youtube.com/watch?v=-RqKgcbEegE

These MetalCloak Gold parts look great and work just as well as they look—if not better.

Heavy duty MetalCloak steering system install parts for Jeep Gladiator to cure Death Wobble. — Armor for the axle: Laying out the solid steel, zinc-plated components that make up the backbone of the 'Nuclear Option' steering cure.

✅ Find MetalCloak Parts at the MetalCloak Parts Store on Amazon

✅ Find MetalCloak Parts For Your Vehicle on eBay

Going Nuclear: Why the MetalCloak Steering System Install Matters

When I started this series, I thought it would be eight parts. We’re at part eight now, and the "scope creep" is real. In the construction industry, we know you don't build on a shaky foundation. To truly eliminate Death Wobble, I’m moving away from factory hollow bars and installing the zinc-plated, solid steel beasts from MetalCloak.

A successful MetalCloak steering system install is about more than just beefy parts; it’s about restoring the steering geometry and eliminating the "cumulative slop" we’ve been researching. As we found with the upper control arms, every pivot point matters.

Macro shot of destroyed Jeep U-joint replacement bearing cap filled with crushed needle bearings.

Before I could get to this heavy-duty hardware, I hit a major diagnostic roadblock with my driver-side axle. If you haven't seen the 'warts and all' reality of how a simple repair can turn into a $162 headache, check out my previous post: My $162 Jeep U-joint Replacement Mistake: A DIY Reality Check. That detour was a hard lesson in 'adapting,' but it only reinforced why I’m going 'Nuclear' with this solid steel MetalCloak system now

Photo Caption:

The fatal crunch. This macro shot shows exactly what happened when a rental press dislodged the needle bearings inside the cap. This expensive little failure is what pushed me to go 'Nuclear' with the solid steel MetalCloak system.

A career as a Sheet Metal Worker means learning to "adapt."

The Sheet Metal Pro’s Guide to Hanging a Drag Link

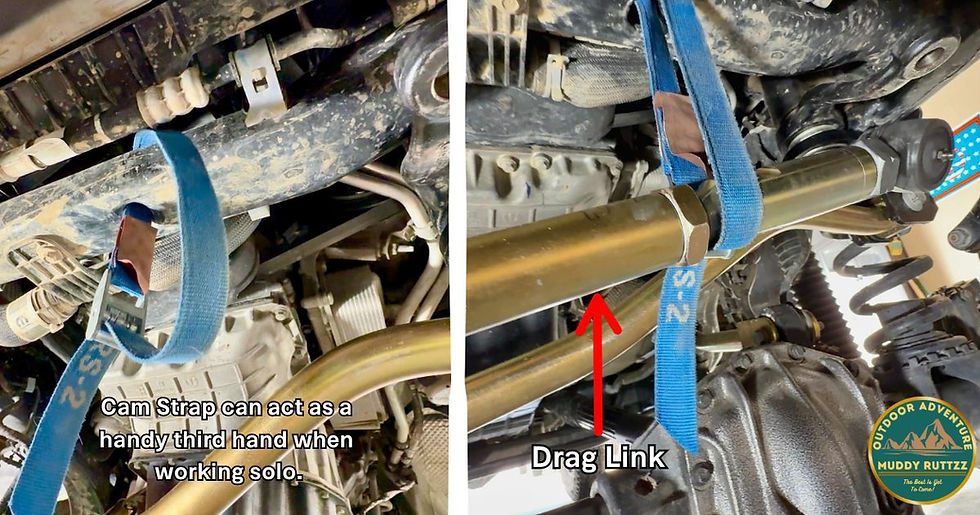

Hanging a heavy drag link by yourself is a lot like hanging 25-foot sections of gutter—a trick I learned in my 40 years as a sheet metal worker. I used a dead-man strap to hold one end while I connected the Pitman arm. These bars are massive, and the anti-flop ball joints are a huge upgrade over the OEM "pivot-and-pray" design.

Hands holding an adjustable crow's foot and torque wrench to apply precise spec to Jeep Gladiator pitman arm end and ball joints. — No slop allowed: Applying exact **torque specs** using an adjustable crow's foot and wrench, strictly following the method to lock the spindle. This ensures a permanent cure, not just a temporary fix, for the 'Nuclear Option

Critical Torque Specs for the MetalCloak Steering System Install

Precision is the difference between a "good enough" job and a permanent fix. During this MetalCloak steering system install, I used two different methods to stop the spindles from turning while torquing: a 10mm socket for the tie rod and a 6mm Allen wrench for the Pittman arm.

The Torque List:

Tie Rod Ball Joints: 47 ft lbs
Drag Link (Knuckle Side): 47 ft lbs
Drag Link (Pittman Arm Side): 77 ft lbs

Note: If you are using a crow's foot like I did, remember that at 90 your torque value stays the same. If it's sticking straight out, you have to do the math. My 77 ft-lbs dropped to $70.25ft-lbs with the extension.

Great Selection Of Suspension Upgrade Tools On My eBay Store - Check Prices

Great Selection of Automotive Suspencion Tools on my Amazon Store - Check Prices

Diagram showing torque formula $T1 \times (L / L+C) = T2$ for using a crow's foot extension with labeled measurement points. — When space gets tight, the geometry changes. This diagram provides the hidden calculation required to make sure your **MetalCloak steering system install** is defined by exact torque physics, not expensive guesswork

Black Jeep wheels stacked on cardboard beside a parked Jeep. Text reads: "8'' wide Jeep wheels with 4.5 Backspace are a Unicorn Wheels." — Finding the 'Unicorn' wheels: These 8-inch wide Black Rock 942 Steelies with $4.5\text{ inches}$ of backspacing were the key to giving my new **MetalCloak steering system** the breathing room it required

The Wheel Clearance Surprise: Black Rock Steelies

I missed a small detail on the MetalCloak website: the factory wheels won't clear these beefy components. This gave me the perfect excuse to switch to Black Rock 942 Type D Steelies. With 4.5" of backspacing, these wheels provide the breathing room the new steering system needs.

I’m currently running them lug-centric while waiting for the correct hub-centric rings, torquing them to 130 ft lbs in a criss-cross pattern to keep everything centered and vibration-free.

✅ Quality Made in USA Black Rock Wheels Available on Amazon - Check Prices

✅ Quality Made in USA Black Rock Wheels Available on eBay - Check Prices

DIY Jeep alignment: 24-inch Unistrut tool on brake rotor with tape measures to set 1/8-inch toe-in. — Garage hack! Using a 24-inch piece of Unistrut attached with a Jeep lug nut and some tape measures to dial in a precise 1/8-inch toe-in for the front-end alignment. Simple, effective, and perfect for the DIY mechanic

Red tire balancing machine with a roller for simulating road conditions. Visible text: "HUNTER HammerHead." Garage setting. — Giving your tires the real-world test. Standard balancing only goes so far. The Hammerhead pushes back, simulating road pressure to find hidden vibration sources that regular spins miss. When your steering relies on solid **MetalCloak tie rod** and **drag link** components, your tire assemblies can't be the weak link.

DIY Alignment and Road Force Balancing

Before heading to the alignment shop, I set 1/8 toe-in using some 5/8 unistrut and an aluminum level. To rule out the tires as a cause of the shakes, I had my Mickey Thompsons Road Force balanced on a Hunter Hammerhead machine. This load-testing ensures that the tires are as "round" as possible under the weight of the Gladiator.

Close-up of a Jeep's gold MetalCloak drag link adjuster under the vehicle, with an arrow pointing to the adjustment sleeve. (136 characters)

Caption: Time check! Using the beefy MetalCloak drag link adjuster to make sure the steering wheel is pointing straight again. — Time check! Using the beefy MetalCloak drag link adjuster to make sure the steering wheel is pointing straight again.

And we have verticality! The final check after adjusting the drag link to ensure the steering wheel is perfectly centered.

Conclusion: The Mission Continues

With the steering wheel centered and the bars greased, the Gladiator already feels tighter. This MetalCloak steering system install is the backbone of the Nuclear Option. We’ve replaced the ball joints, the U-joints, and now the entire steering linkage.

Check out all the great DIY, Adventure, and Gear Review articles here on The Muddy Ruttzz Gazette and also my videos on Muddy Ruttzz Youtube. I'll see you on the next one, and don't forget, the best is yet to come!

About Muddy Ruttzz - Muddy is a retired sheet metal worker with over 40 years of experience in HVAC and project management. When he isn't in his Las Cruces studio "Casa Encuentro del Sol" creating content for the Muddy Ruttzz YouTube channel, he’s likely out in the desert or the mountains putting his 2022 Jeep Gladiator EcoDiesel to the ultimate test.
