Why a Jeep Sector Shaft Brace is Essential
I didn't realize how much a steering box could flex until I started chasing the death wobble on this 2022 Jeep Gladiator Rubicon. Today, we're beefing up the steering to stop the shake. Welcome to Muddy Ruttzz. This is part 4 of our series, and while no single part is a "silver bullet," this Jeep Sector Shaft Brace is a critical piece of the puzzle.
By the time we finish this build with Metalcloak and Dynatrac components, this Gladiator should drive better than the day it left the showroom.
Muddy Ruttzz Youtube Channel
My Articles and videos are unsponsored and all opinions are my own.
Support Us! Use my ✅ affiliate links from Amazon & eBay throughout and at the end of this article. I get a commission without any additional cost to you. You don't have to buy the listed product. I get credit if you click and purchase anything within 24 hours. Your support means the world to me! Learn More
Steer Smarts vs. The Competition
There are basically three go-to sector shaft braces Jeep owners reach for to stiffen up their rigs. The Synergy and Steer Smarts units are similar in design and reinforce the front track bar mount. The Metalcloak is a different design entirely, mounting to a cross-member to spread loads across the frame.
The "3-fer" Advantage
After looking at all three, the Steer Smarts Yeti XD hit the sweet spot for this build. I went with it because it offered what I call a "3-fer":
Steering Box Reinforcement: Prevents the box from twisting under load.
Sector Shaft Support: The roller bearing stops the shaft from side-to-side deflection.
Track Bar Bracket Tie-in: Beefs up one of the most notorious weak points on the Jeep frame.
If you’re running larger tires and hitting desert washes, you aren't just looking for a brace; you're looking to solidify the entire foundation of your steering geometry.
A Note on Frame Flex
As someone who has spent decades working with metal, I can tell you that the factory frame horns and brackets are surprisingly thin given the leverage of 35" or 37" tires. When you tie the sector shaft to the track bar bracket, you aren't just fixing a wobble—you're preventing the metal fatigue that leads to cracked frames down the road.
Jeep JL/JT Sector Shaft Brace Comparison
Feature | Steer Smarts Yeti XD | Synergy Mfg | Metalcloak |
Bearing Type | Sealed Roller Bearing | Bronze Bushing or Roller Bearing | Oil-Embedded Bronze Bushing |
Material / Finish | 1/4" E-Coated Steel (Matte) | 1/4" Powder Coated Steel (Grey) | 3/8" Gold Zinc Coated Steel |
Mounting Strategy | Reinforces Track Bar Mount | Supports Track Bar & Frame | Spreads load to Crossmember |
Installation | Bolt-On (No Trimming Needed*) | Bolt-On (Minor grinding on older models) | Some Drilling Required |
Hardware | Magna-Coated (OEM Quality) | Zinc Coated (Yellow/Silver) | Clear Zinc Coated |
Price (Approx) | $280 – $320 | $325 – $350 | $240 – $260 |
Sector Shaft Braces on Amazon - Check Price
Tackling Steering Box Flex
If you have a 2018 to 2020 Wrangler JL or Gladiator, your steering box is likely aluminum. That's fine for a mall crawler, but slap on 37" tires and even the 2021+ iron boxes start to face challenges. Large offset wheels and heavy tires put massive lateral stress on the frame. If you're still running aluminum, consider upgrading to iron before adding the brace.
🛠️ Muddy Ruttzz Pro-Tip: The Sheet Metal Worker’s Perspective
After 40 years in the sheet metal industry, I see things differently. When I looked at the steering box on this Gladiator, I recognized it as a weak point under a lot of stress. In metalwork, if a long piece is vibrating, you don't just tighten it—you reinforce it. That's what a Jeep Sector Shaft Brace does. By connecting the sector shaft to the track bar bracket, it creates a strong support system, turning a weak mount into a sturdy one. The Lesson: More contact points mean less wear and tear. This setup not only reduces shaking but also helps prevent the frame from bending and breaking.
Integrating Metalcloak Geometry for Total Stability
A Jeep Sector Shaft Brace is an incredible tool for solving the mechanical flex in the steering box, but it works best when it’s part of a larger, coordinated system. This is where our research into Metalcloak components and front-end geometry really pays off.
Think of it this way: the brace provides the strength, while the Metalcloak arms provide the predictability. Together, they transform a "flighty" lifted Jeep into a solid, predictable machine. During the install, don't forget the red threadlocker on the sector shaft nut and ensure you hit that 177 foot-pound torque spec to keep everything locked home.
While the Steer Smarts brace handles the physical deflection of the steering box, the Metalcloak upper control arms allow us to dial in the correct Positive Caster. As we’ve discussed, that backward tilt of the steering axis is what gives your Jeep its "return-to-center" feel. Without that geometry, even a braced steering box will feel "darty." By combining the structural "beef" of the brace with the precise alignment of the Metalcloak arms, you aren't just fixing a wobble—you're actually improving the Jeep's handling beyond the factory specs.

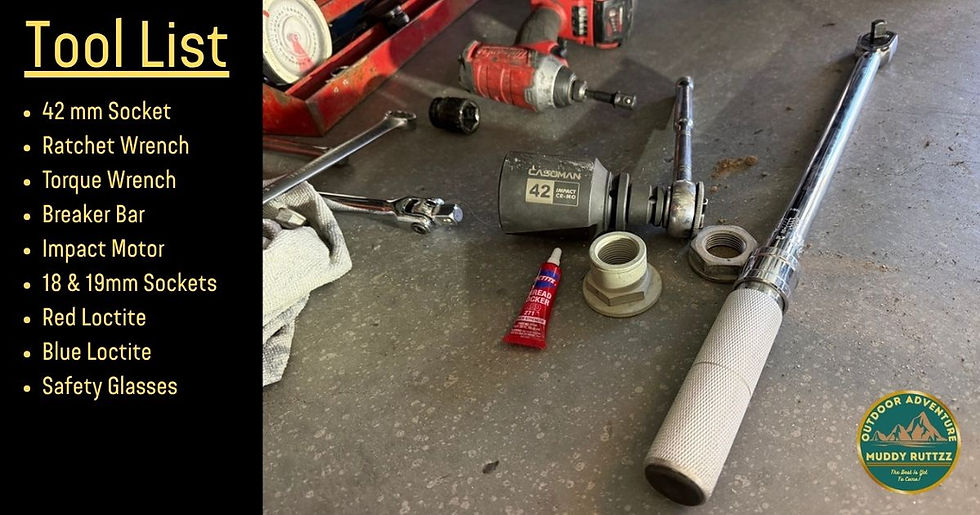

Tools Required for the Installation
Before you get your hands greasy, make sure you have the right gear on the bench.
Step-by-Step: Removing the Drag Link and Track Bar (Possibly Tie Rod)
My Gladiator is getting what I call the "Nuclear Option" approach to doing away with the Death Wobble. Technically, to install most Jeep Sector Shaft Braces, you only need to remove the drag link and disconnect the frame side of the track bar.
However, removing the track bar entirely makes the brace installation 10x easier. Since I’m replacing all three components with Metalcloak gear to finish my "3-fer" reinforcement, the whole assembly is coming out. Here is the teardown:
Drag Link: Loosen the ball joint nuts on both ends. A solid smack on the side of the mounting point with a hammer usually helps it slip down so you can remove it. (Be careful—as I found in the video, these can sometimes "explode" apart if they are under tension!)
Track Bar: Remove the 21mm bolts at both ends. Note that the frame side requires a back-up wrench, while the axle side uses a convenient factory flag nut.
Tie Rod: While not strictly required for the brace, I’m pulling this to make room for the full Metalcloak steering suite.
Torque Specs and Threadlocker Tips
Steer Smarts provides detailed instructions that must be followed for a successful install, but here is the Muddy Ruttzz quick-reference breakdown for when you're under the rig:
Verify Your Box: Ensure you have the correct brace for your specific steering box (Aluminum vs. Steel).
Clear the Deck: Remove the Drag Link and the 21mm Track Bar bolt.
The 'Big Boy' Nut: Swap the factory nut for the Steer Smarts Sector Shaft Nut (42mm Deep Well). Apply Red Loctite and torque to 177 ft-lbs.
Frame Prep: Remove the 4 steering box bolts from inside the driver-side wheel well.
Brace Placement: Install the Steer Smarts Brace using the included bolts (leave them loose for now).
Bearing Install: Slide the roller bearing plate into place. Apply Blue Loctite to the bearing plate bolts.
The Final Torque: * Brace/Frame Bolts: Torque to 97 ft-lbs (Note: Steer Smarts updated this spec from the old 'angle-torque' method).
Bearing Plate Bolts: Torque to 30 ft-lbs.
Safety First: Install the C-clip on the bottom of the Sector Shaft Nut.
You’ve officially transitioned from a single-point setup to a reinforced structural assembly!
🛠️ Final Checklist for Success: Killing the Death Wobble
Before you pull the Jeep out of the garage and head for the dirt, run through this final checklist to ensure your "3-fer" fix is rock solid.
1. The Pre-Game Prep
[ ] Tool Check: Do you have the 42mm socket for the sector shaft nut?
[ ] Chemicals: Do you have both Red Loctite (for the big nut) and Blue Loctite (for the brace bolts)?
[ ] Safety: Got your eye protection? Grinding the drag link bolt or using a ball joint separator can send debris flying.
2. The "3-fer" Brace Install
[ ] Dry Fit First: Don't start grinding your shock tower! Check if your Steer Smarts brace has the updated deeper notch for a "no-trim" install.
[ ] The "3-fer" Alignment: Ensure the brace is reinforcing the steering box, the sector shaft, and the track bar bracket.
[ ] Torque Specs: * Sector Shaft Nut: 177 ft-lbs (Don't forget the Red Loctite and the C-clip safety!).
Frame Bolts: 97 ft-lbs (Updated spec from Steer Smarts).
Roller Bearing Bolts: 30 ft-lbs.
3. The Geometry
[ ] Positive Caster: If you’re running Metalcloak upper control arms, ensure you’ve dialed in that backward tilt.
[ ] Self-Centering: Does the steering wheel naturally want to return to center after a turn? If not, revisit your caster settings.
[ ] Structural Bridge: Verify that all Metalcloak front-end components (track bar, tie rod, drag link) are torqued to spec to complete the "bridge."
4. The Desert Shakedown
[ ] Visual Inspection: After your first few miles, crawl back under and look for any signs of shifting or loose hardware.
[ ] The "Wobble" Test: Find a safe, controlled area to test for stability over bumps.
Final Thought from the Studio
Remember, a Jeep is a system of levers. By using the Steer Smarts brace for strength and the Metalcloak arms for geometry, you’ve fundamentally changed the physics of your front end. You aren't just driving a lifted Jeep anymore; you're driving a precisely engineered machine.
Conclusion: From "Flighty" to Rock Solid
The Steer Smarts Yeti XD isn’t just another bolt-on; it’s the structural backbone that the Jeep JL and JT frames desperately need when you move away from stock dimensions. By addressing the "3-fer"—the steering box, the sector shaft, and the track bar bracket—we’ve fundamentally stiffened the front end and stopped the "feedback loop" that leads to the dreaded Death Wobble.
But remember, strength is only half the battle. As we’ve seen, pairing this physical reinforcement with the Positive Caster provided by Metalcloak arms is what truly transforms the driving experience. You aren't just masking a problem; you're over-engineering a solution.
